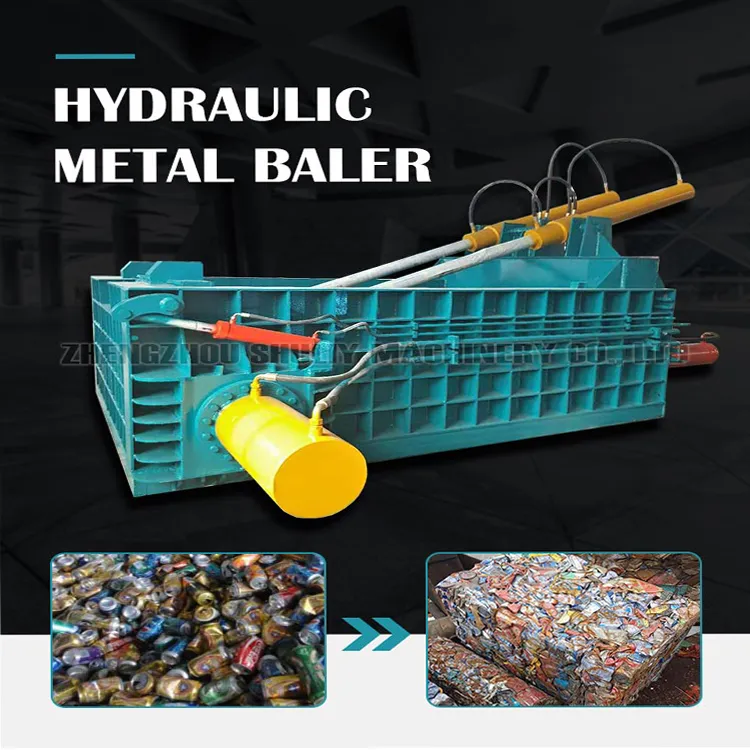

Hydraulic Metal Baler For Sale

Brand: Shuliy.
Function: Hydraulic power is used to apply pressure to compact materials into dense and manageable bales.
Output Capacity: 0.6T-14T，Provide customization.
Common Raw Materials: aluminum can，steel，iron scrap, barbed wire, scrap metal, scrap car, cardboard, waste plastic, PET plastic bottles ect.
Bale Size: Provide customization.

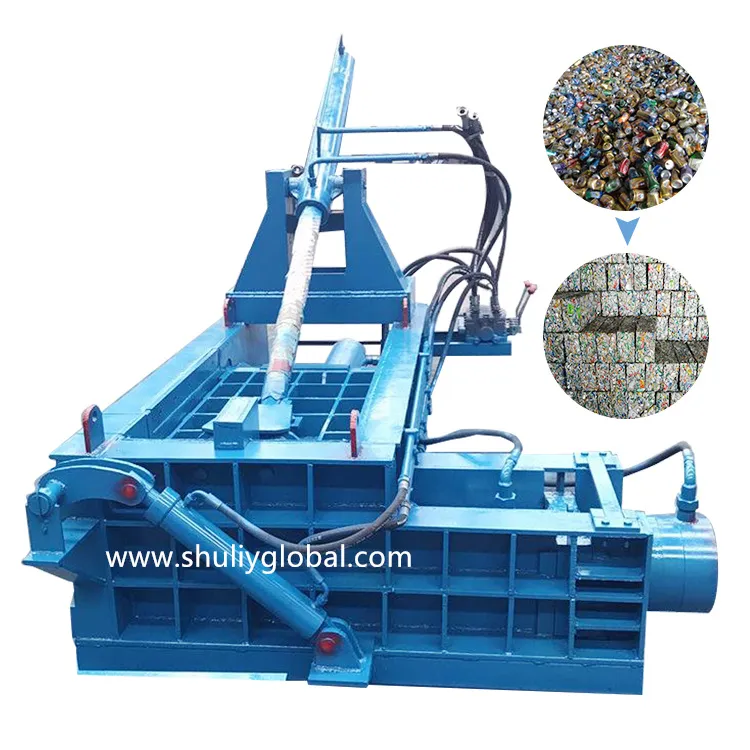

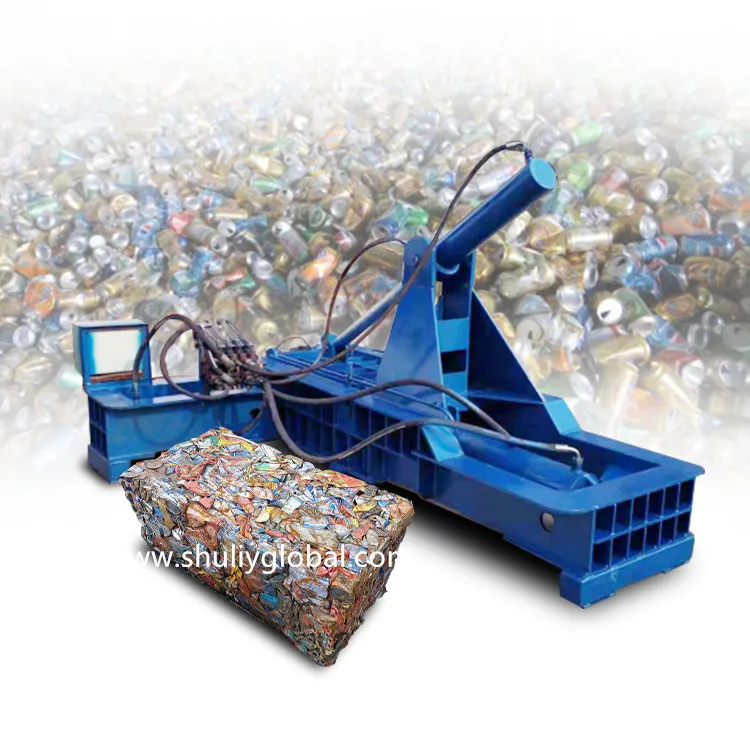

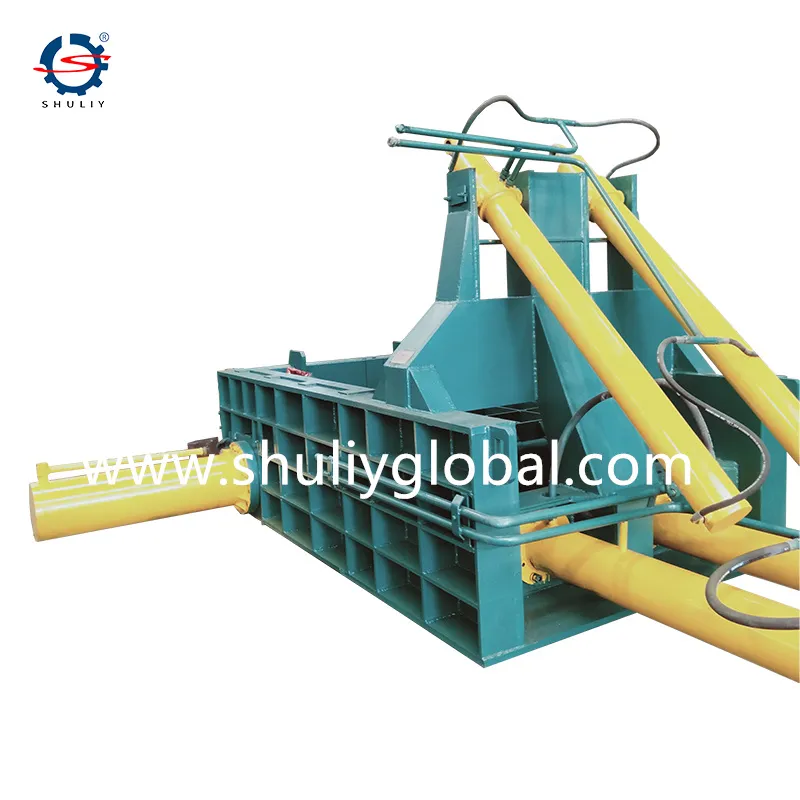

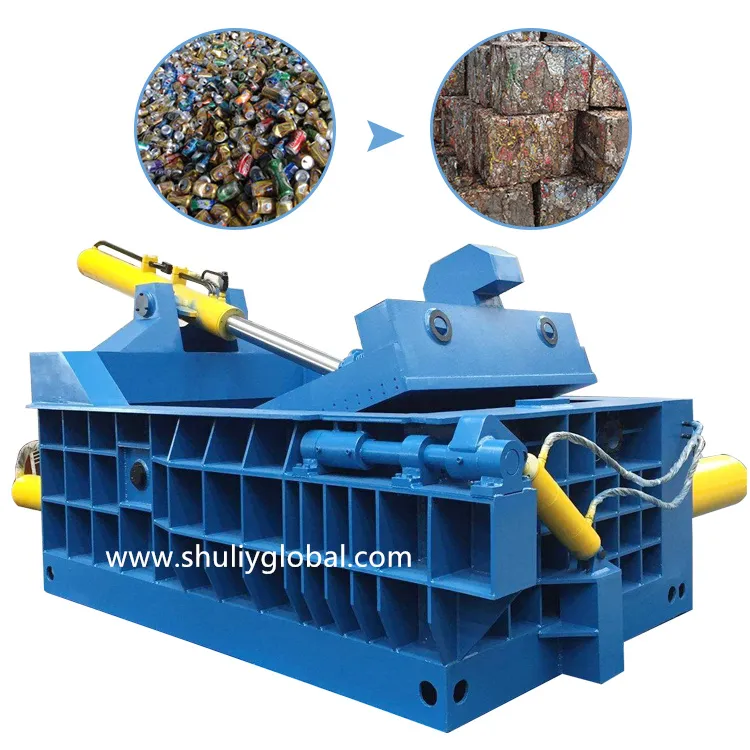

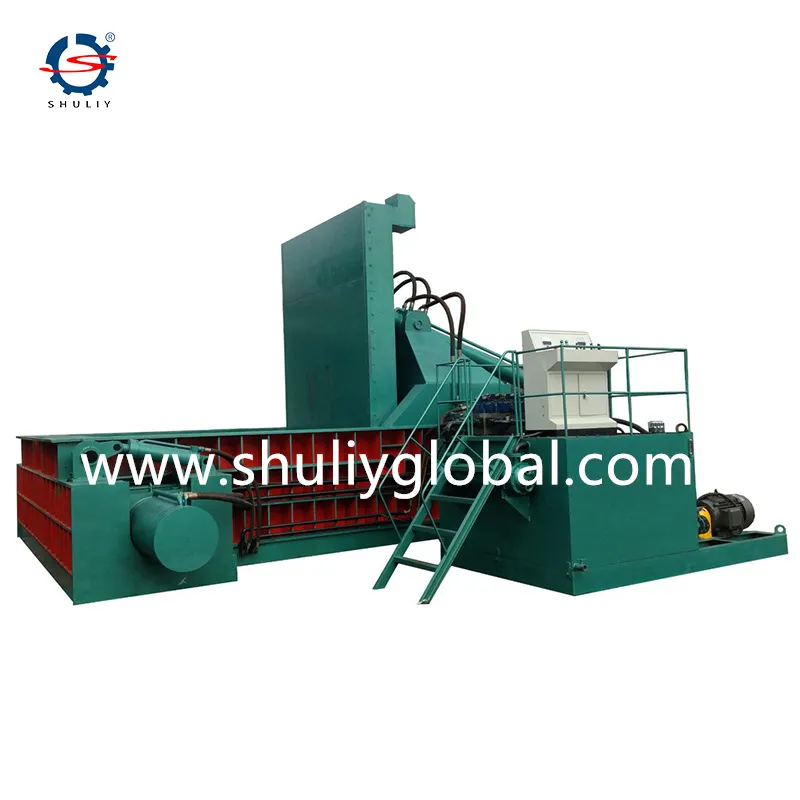

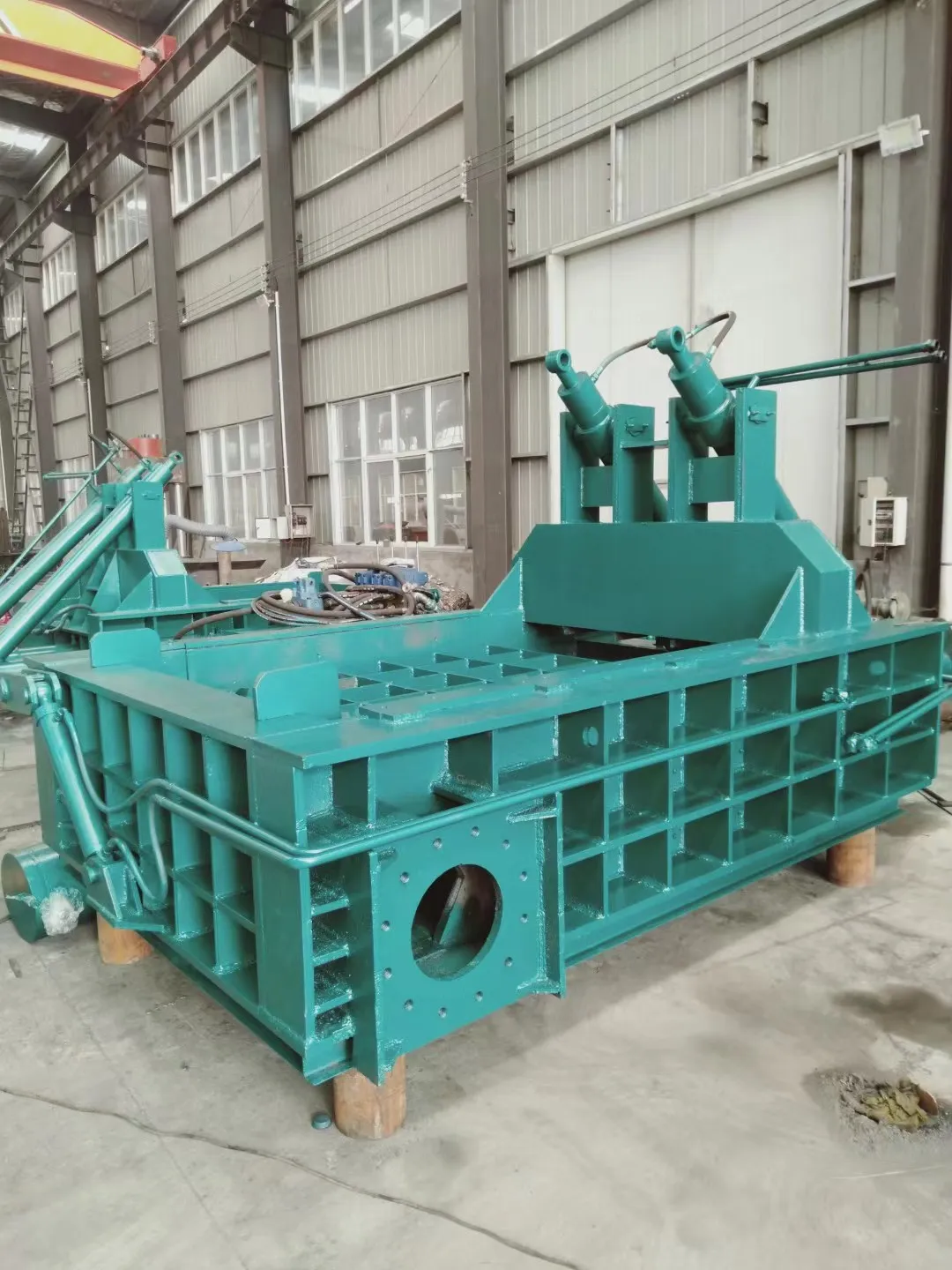

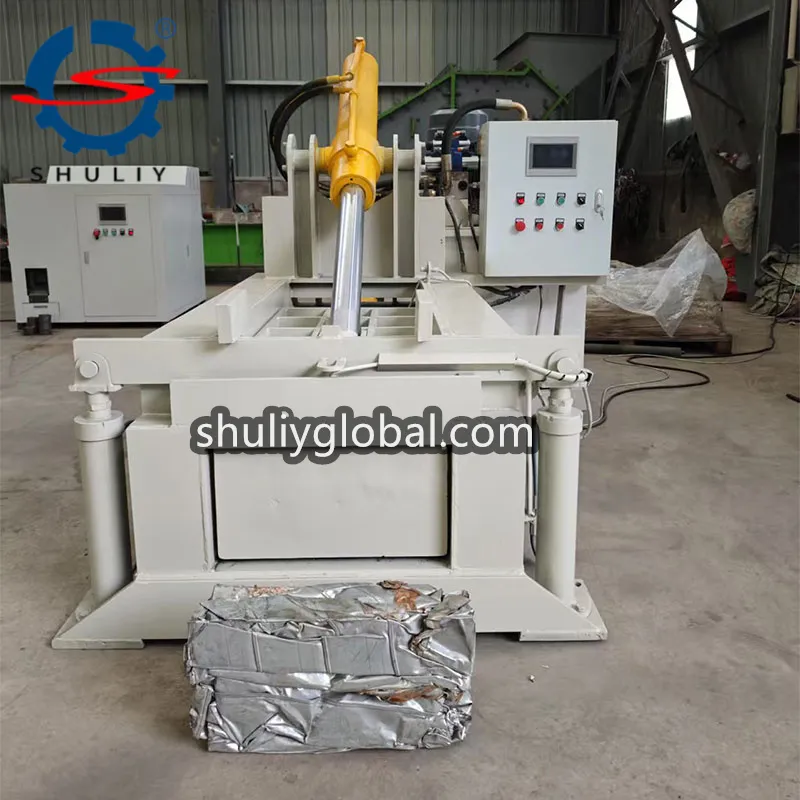

Horizontal Metal Baler

Suitable for large-volume and high-density metal Balering.

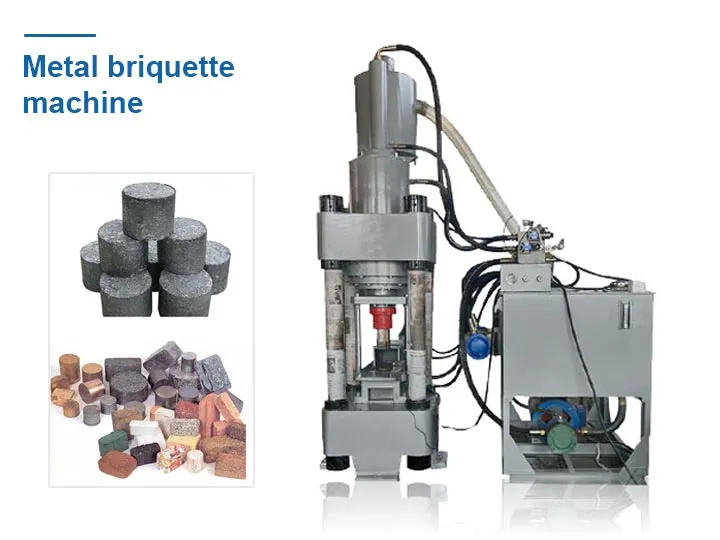

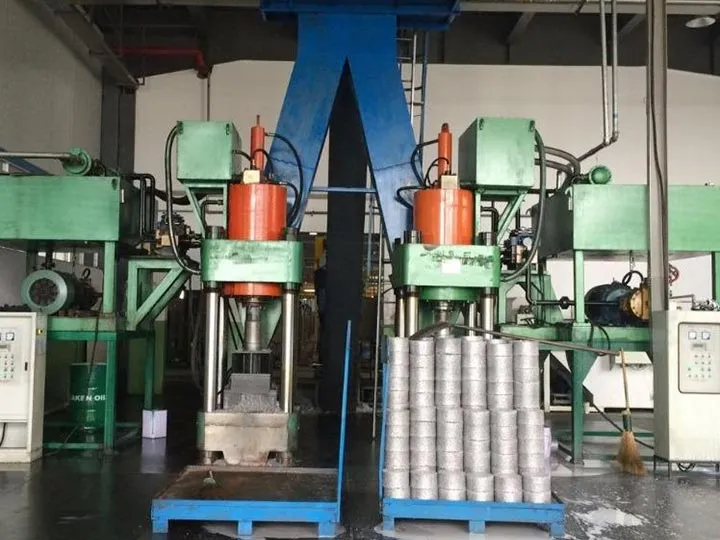

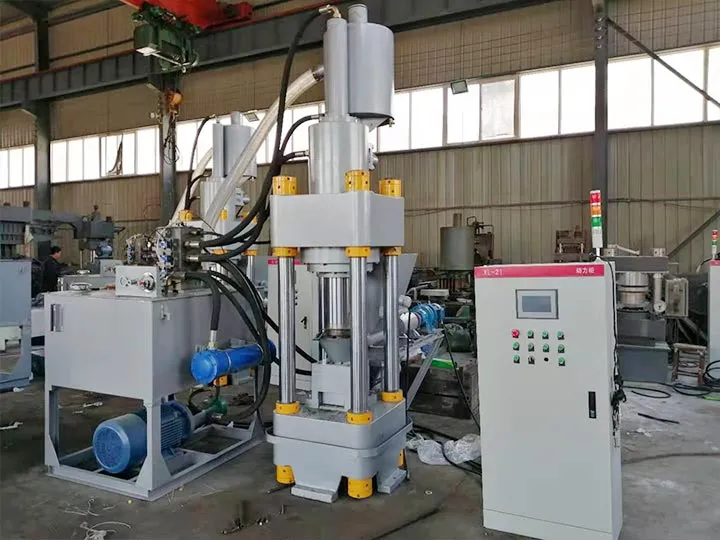

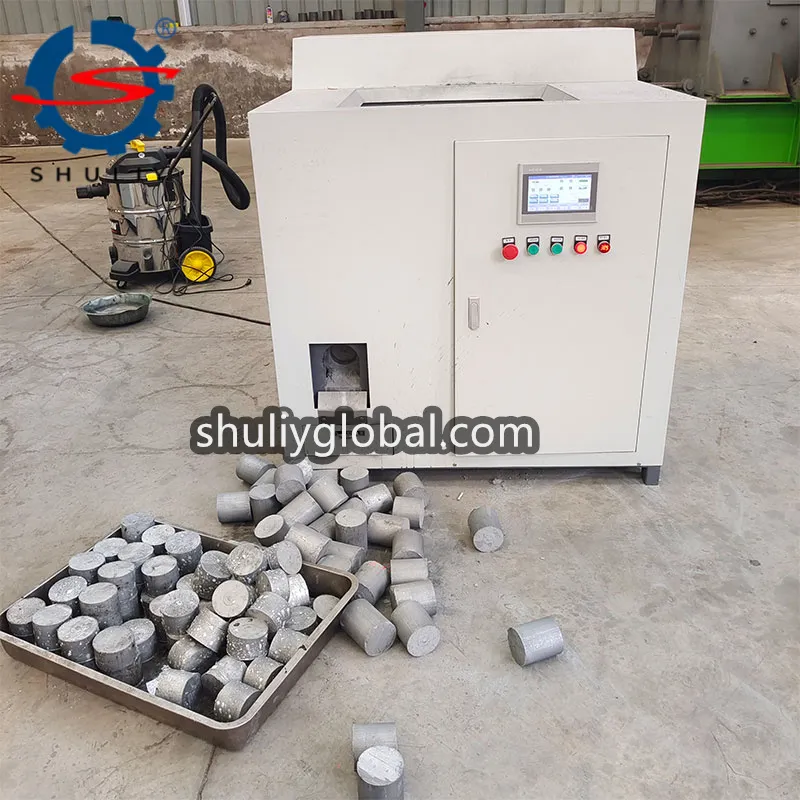

Metal Briquetting Machine

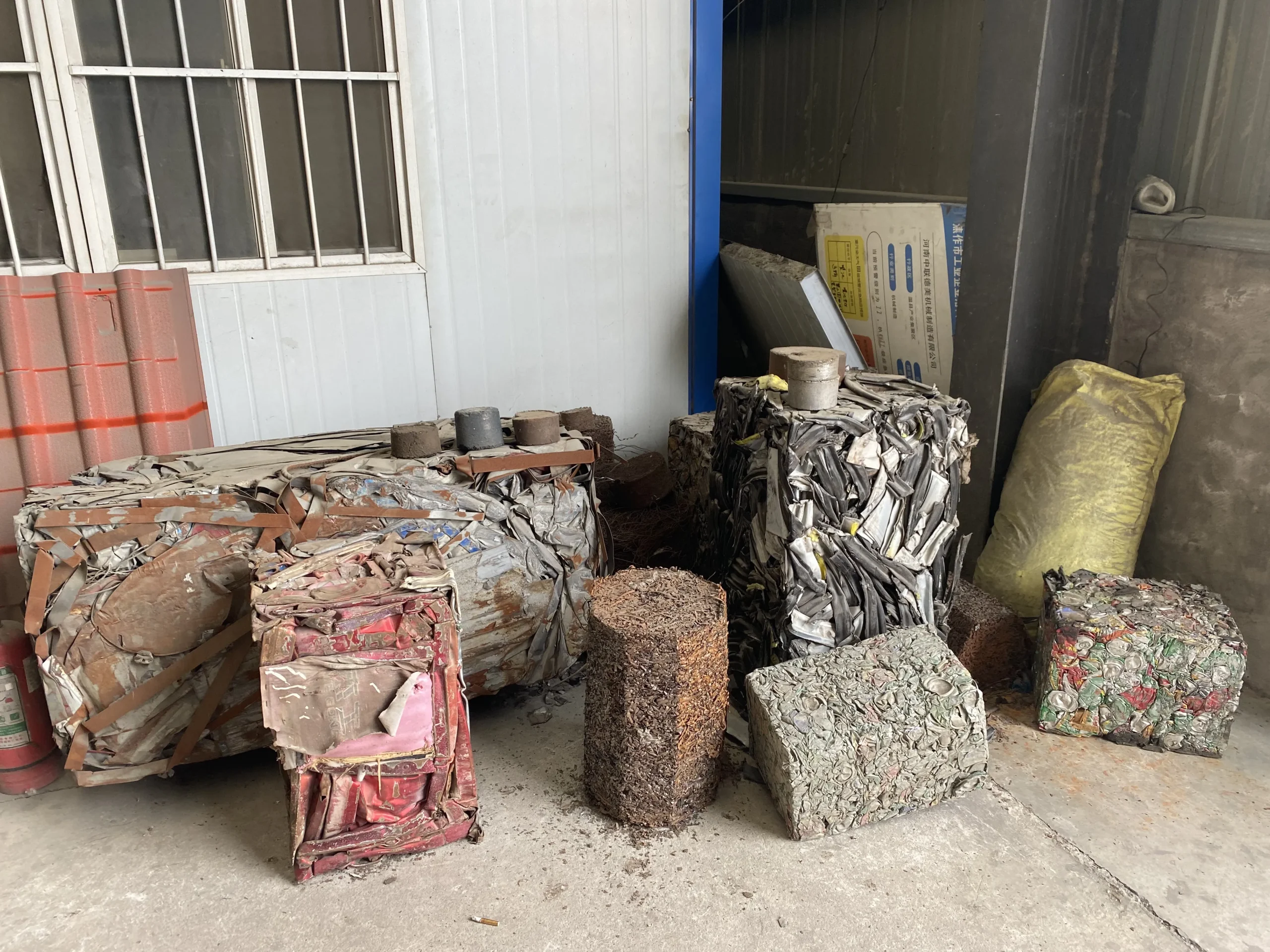

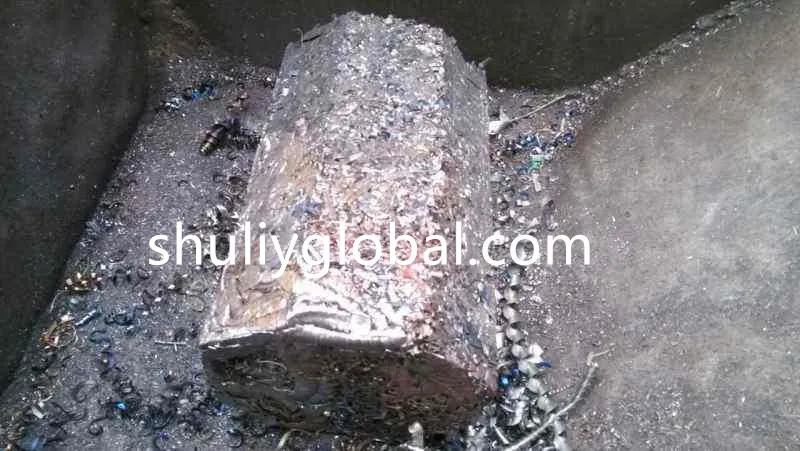

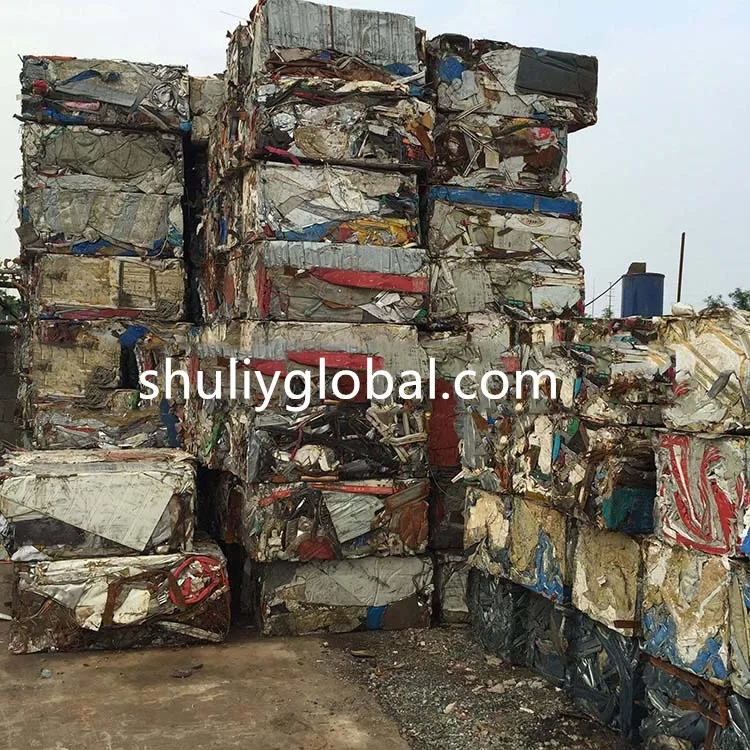

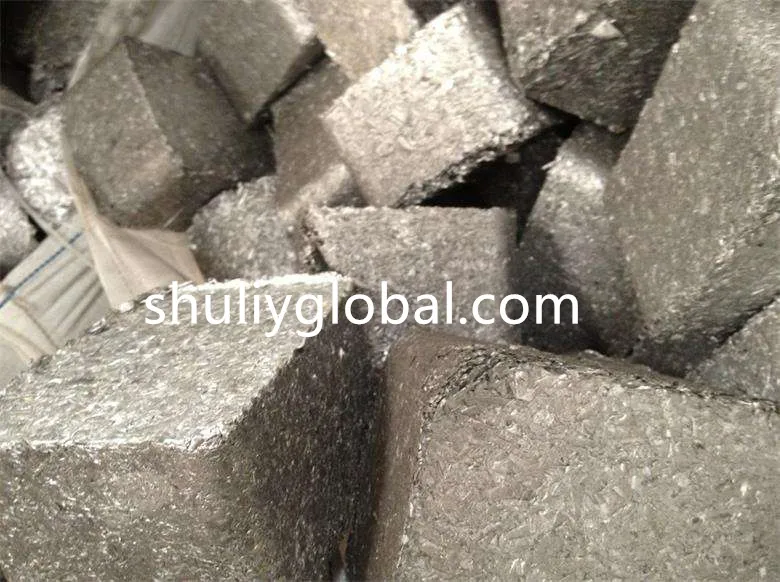

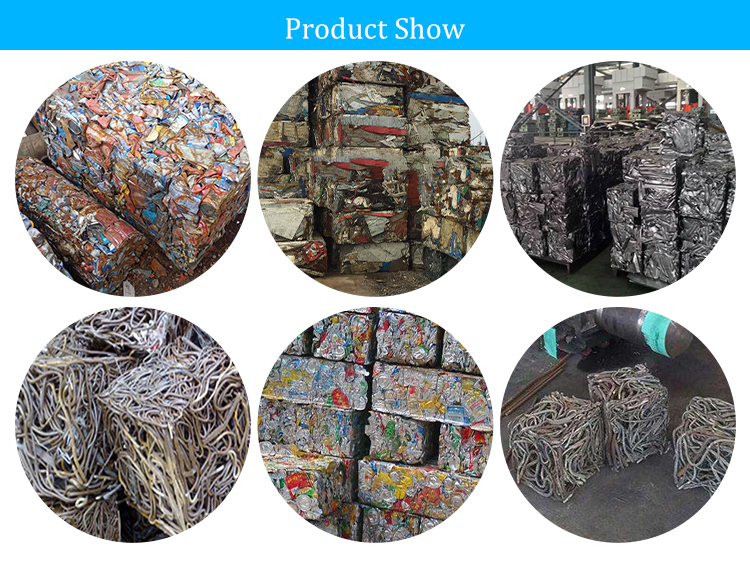

Applicable Metal Scrap Types

Main Purpose And Scope Of Application:

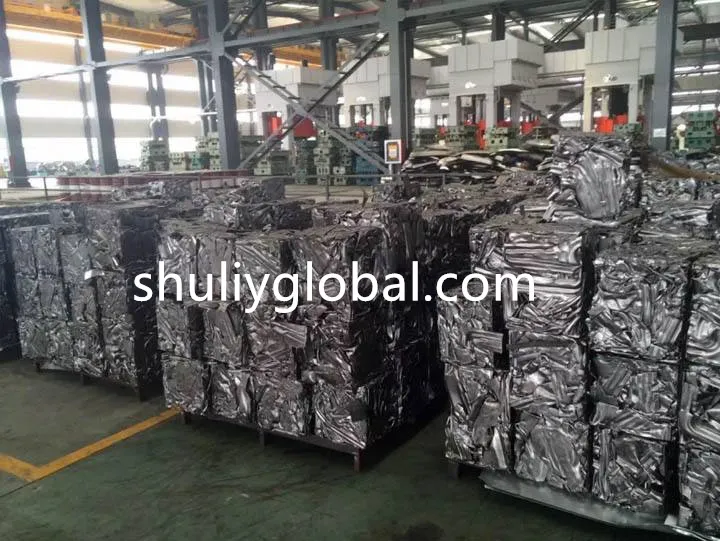

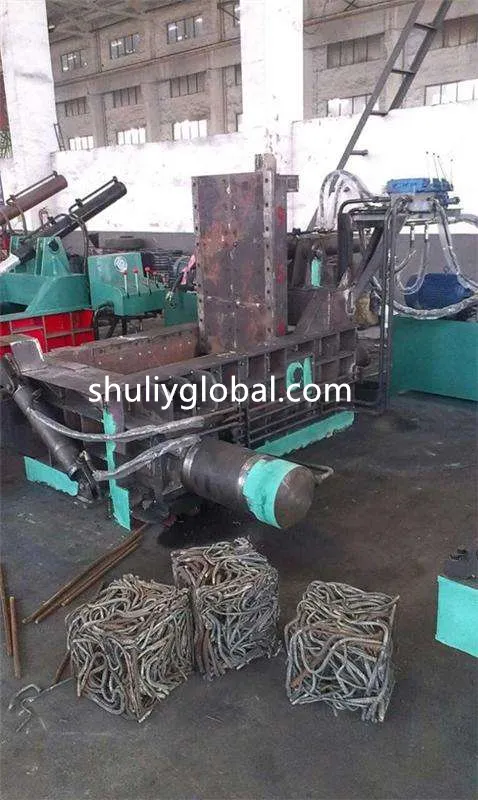

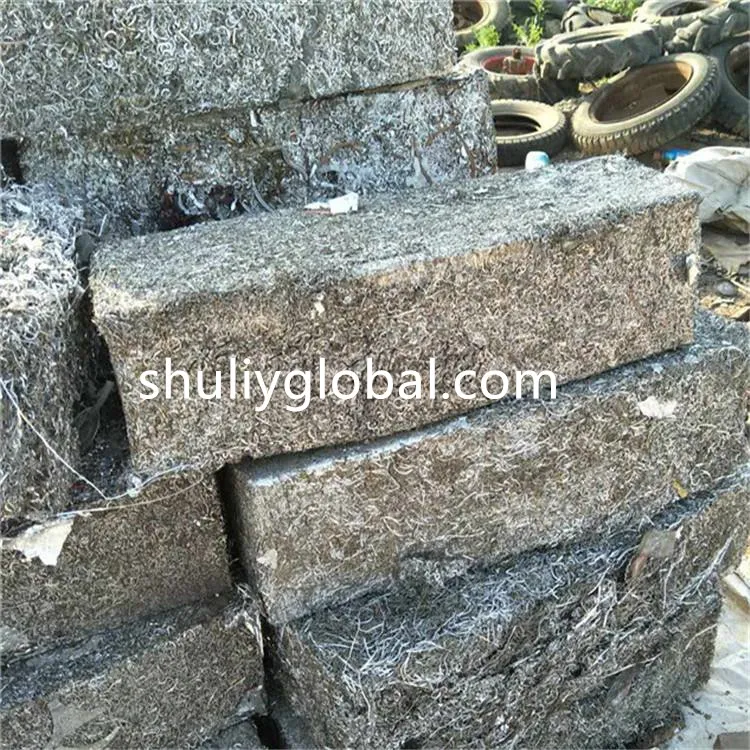

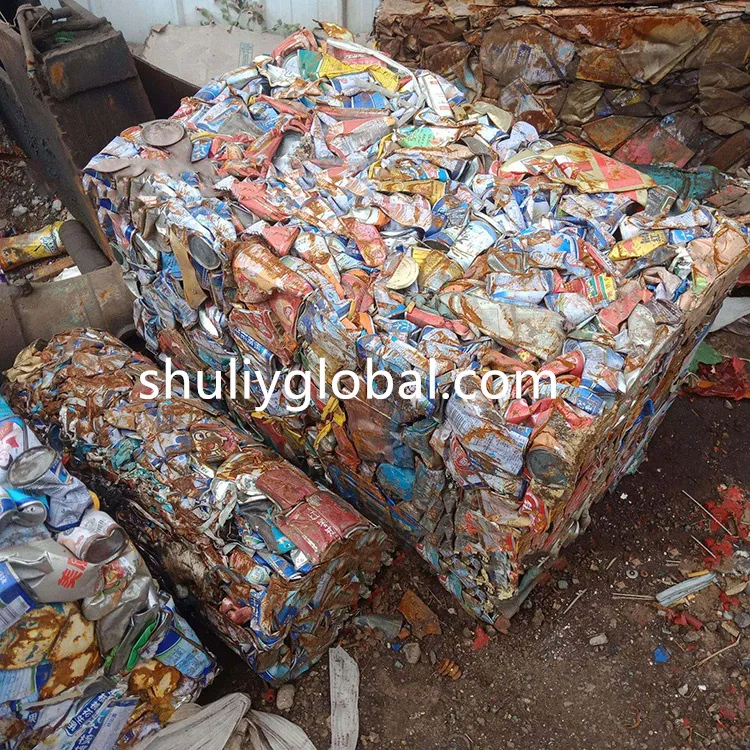

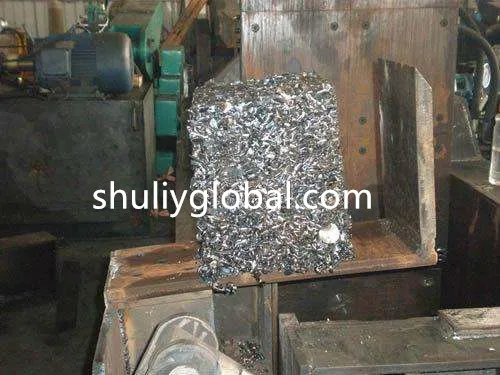

The metal baler machine is suitable for steel making plants, recycling and processing industries, and non-ferrous and ferrous metal smelting industries. It can press various metal scraps, steel shavings, scrap steel, scrap aluminum, scrap copper, etc. to pressure cuboids, cylinders, octagons, etc.

Qualified charge of various shapes to reduce transportation and smelting costs, hydraulic drive, manual and PLC automatic control, ten grades from 63 tons to 400 tons, production efficiency from 0.5 tons/hour to 10 tons/hour.

Metal Baler Parameters

Model	Push Power	Compressed warehouse(mm)	Baler size(mm)	Block density(kg/h)	Efficiency(kg/h)	Single cycle time(s)	Power(kw)
Y81-4000A	4000	250020001200	600*600	≥2000	5000-7500	≤160	90
Y81-4000B	4000	300025001200	600*600	≥2000	8500-13000	≤160	90
Y81-4000C	4000	350030001200	600*600	≥2000	9500-14000	≤160	90
Y81-3150A	3150	200017501000	500*500	≥2000	4000-6500	≤150	60
Y81-3150B	3150	200017501200	600*600	≥2000	5000-7000	≤150	60
Y81-3150C	3150	250020001200	600*600	≥2000	6000-8000	≤150	90
Y81-3150D	3150	300025001200	600*600	≥2000	6000-8000	≤160	90
Y81-2500A	2500	20001400900	500*500	≥2000	4000-6300	≤130	44/60
Y81-2500B	2500	200017501000	500*500	≥2000	5000-6300	≤150	44
Y81-2500C	2500	200017501200	600*600	≥2000	5500-6500	≤150	60
Y81-2500D	2500	250020001200	600*600	≥2000	5500-6500	≤150	60
Y81-2000A	2000	16001200800	400*400	≥2000	2500-4500	≤130	22/15
Y81-2000B	2000	18001400900	450*450	≥2000	3000-5000	≤130	30/37
Y81-1600A	1600	16001000800	400*400	≥2000	2000-3500	≤120	22
Y81-1600B	1600	16001200800	400*400	≥2000	2000-4000	≤130	30
Y81-1350	1350	1400600600	600*240	≥2000	1600-2500	≤100	18.5
Y81-1250A	1250	1200700600	300*300	≥2000	1200-1800	≤120	15
Y81-1250B	1250	1400800700	300*300	≥2000	1600-2300	≤140	15

Hydraulic Baler Working Principle:

Put the prepared raw materials into the silo.
Operate the control joystick to physically squeeze the machine.
The main hydraulic cylinder pushes forward, and the side hydraulic cylinders squeeze from both sides to the middle.

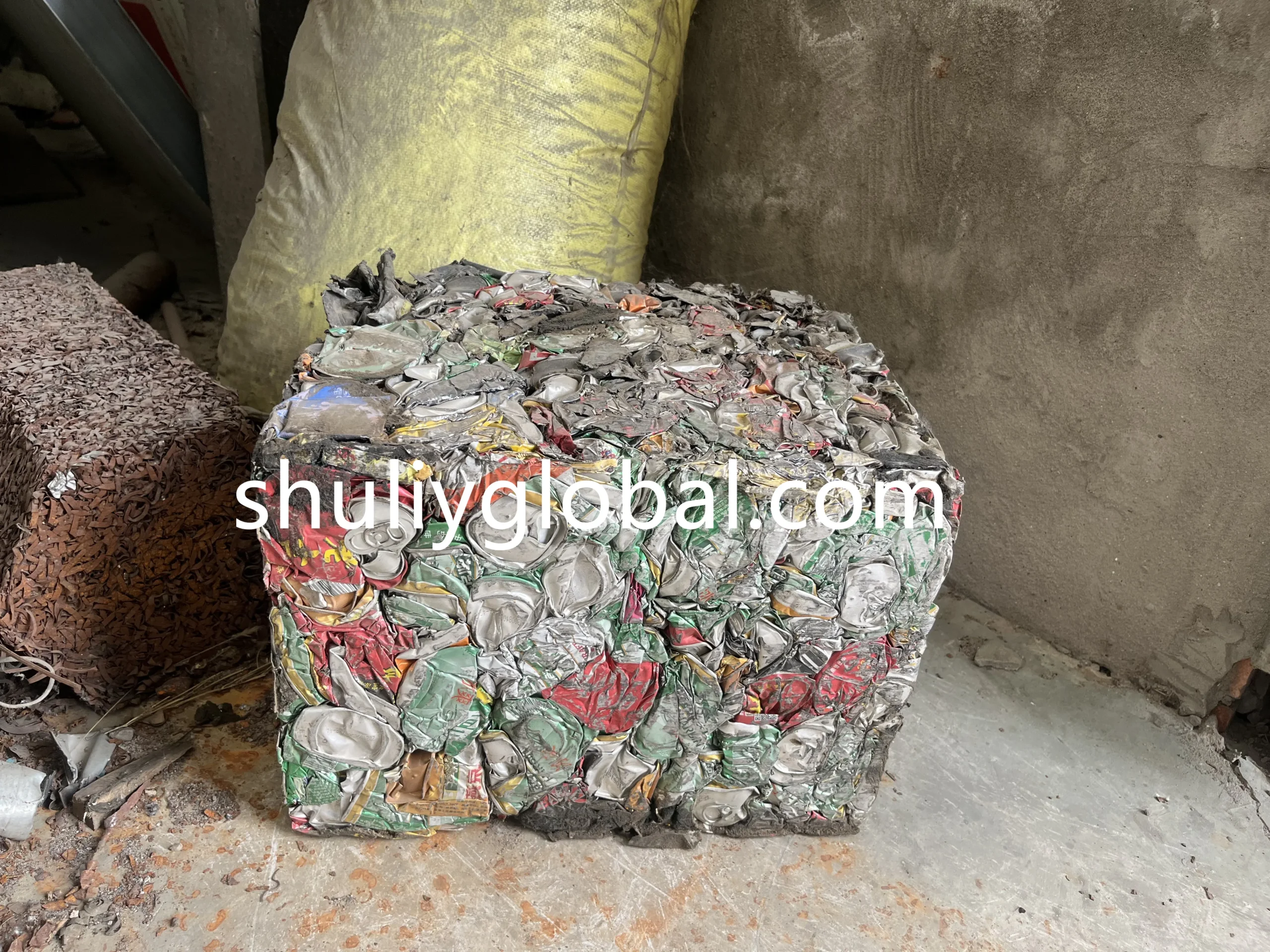

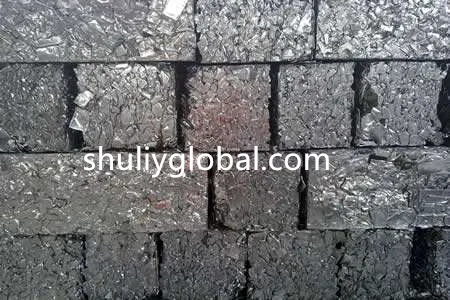

After extrusion is completed, the finished product is packed and sent out.
5.The whole work is completed.

Hydraulic Baler Machine Introduction：

Metal baler machines are mainly used in recycling and processing industries and metal smelting industries. Various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disassembled car shells, waste oil barrels and other metal raw materials can be squeezed into various shapes of qualified furnace materials such as cuboids and cylinders. It is convenient for storage, transportation and recycling.

Machine advantages：

They are all driven by hydraulics, working smoothly, safely and reliably.
Adopt manual or PLC automatic control operation mode.
There are four ways of discharging materials: side-turning bag, side-pushing bag, front-pushing bag or no bag discharging.
No foot screws are required for installation. Diesel engines can be used as power in areas without power supply.
Metal balers come in a variety of specifications to meet the different needs of customers at different levels.
High production efficiency, 0.6t-14t/h.
