Egg Production Line
Egg Production Line Introduce

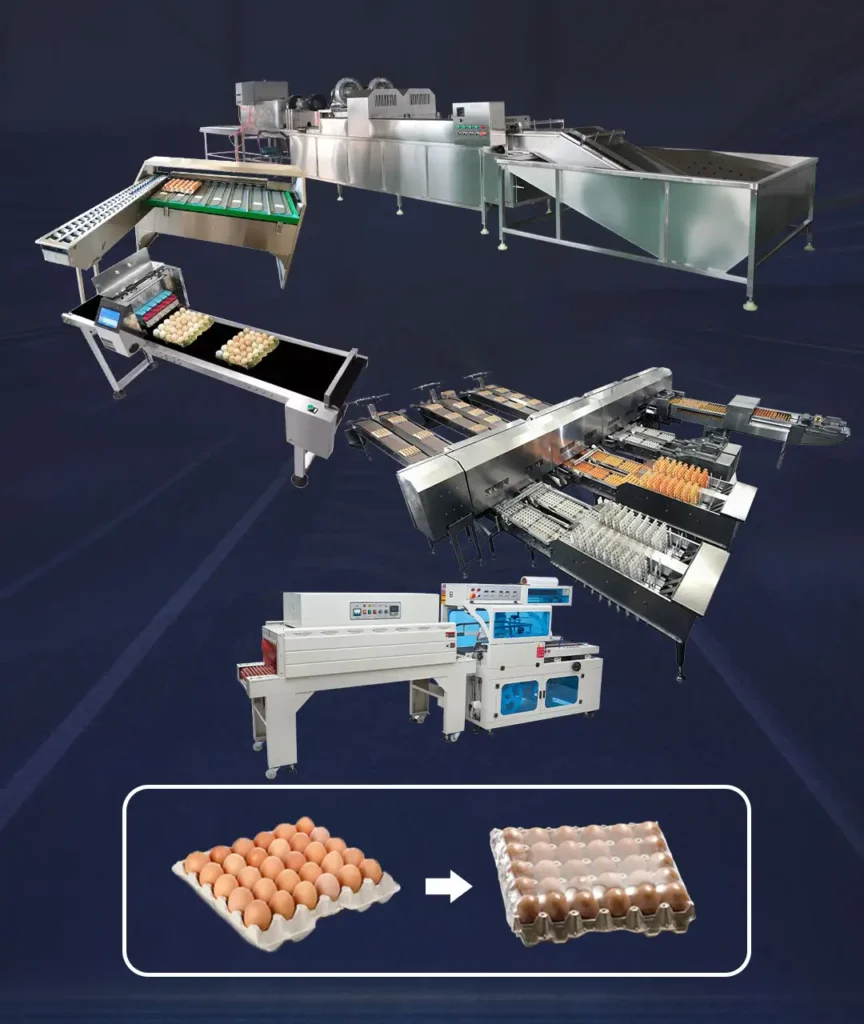

The egg product line includes: egg washing and drying machine, optical sorting machine, egg grading machine, egg inkjet printer, auto egg loader, egg packing machine.The following is a detailed introduction to these machines.
Eggs Cleaning Drying Machine
Divided into single row and double row
Capacity
Single row：5000-7000pcs/h
Double row ：10000-15000pcs/h
Three rows ：25000-30000pcs/h
Egg Grading Machine
Capacity:
5400 pieces/H
3700 pieces/H
Grading ability:
Divided into 5 levels * Eggs are placed in three rows
Seven levels * Eggs are placed in two rows
Material: 304 stainless steel.
Size: 1400*1600*1000mm
Voltage: 220V
Power: 120w
Packing box size 1700*700*1200mm
Weight 170kg/160kg
Auto Egg Loader
Eggs are automatically adjusted, the big and small heads are automatically adjusted to ensure that the small heads are loaded downwards, automatic loading and dragging, modular combination mechanism, electrical socket connection, convenient for transfer, repair, replacement, cleaning and maintenance, LCD touch screen control display, convenient for making. , monitoring, recording, and querying.
Device parameters:
Appearance: 2022*770*980 mm
Efficiency: 1000-15000 pieces/hour
Voltage: 380V
Total power: 0.36kw
Egg Inkjet Printer
Machine size: 2000mm*980mm*410mm
Machine weight :56KG
Number of print heads: single head, 3 heads, 5 heads, 6 heads
Printing resolution 600 DPI
Printing height 2mm-9mm
Printing speed 30000-100000 eggs/hour
Machine material 304 stainless steel material
Machine control Chinese and English 3 inch touch screen or U disk loading
Printing content Chinese characters, numbers, date, LOGO, etc.
Printing language Chinese, English, Russian and other languages
Ink color: red, green, blue, purple, black
Egg Packing Machine
(also called automatic sealing and cutting machine, egg film shrinking machine，egg tray shrink wrapping machine ect.)
Function description: Packing whole pallets of eggs for easy transportation and sales.
Important technical parameters
Electric height adjustment
Sealing knife size/machine size:
Model: 550L type
Horizontal sealing cutter size: 550mm
Horizontal sealing cutter size: 650mm
Sealing cutter size: 150mm
Machine size: 1960*1100*1470mm
Model: 750L type
Horizontal sealing cutter size: 750mm
Horizontal sealing cutter size: 850mm
Sealing cutter size: 150mm
Machine size: 2120*1180*1470mm
